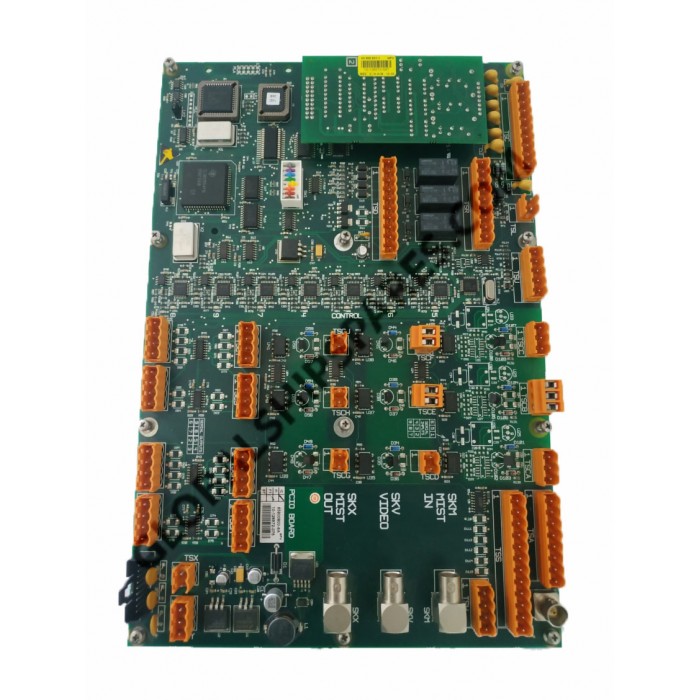

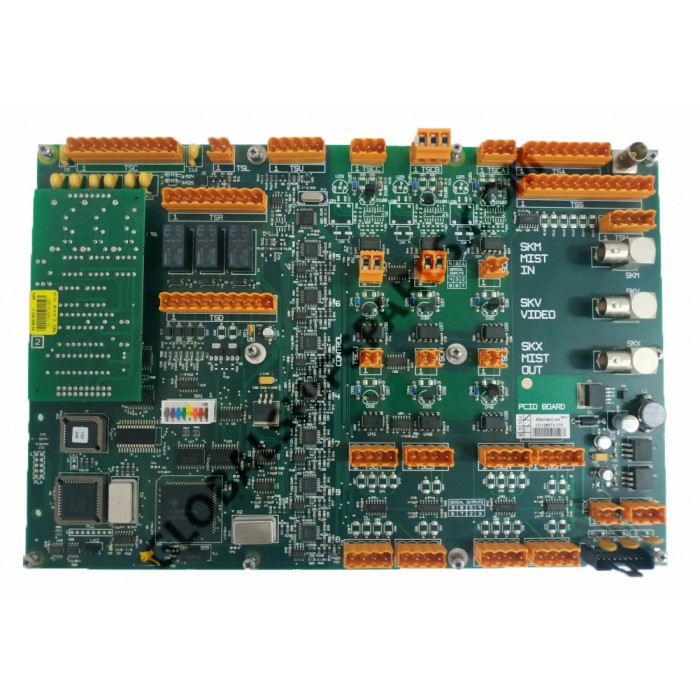

Sperry Marine PCIO Board

Sperry Marine Performance Monitor S-Band

Item Code:

T65900800-6A

Brand:

Sperry Marine

Condition:

Refurbished

The PCIO Board has three high speed serial input (38400 baud) and six low speed serial inputs (4800 baud).

Communication to the processor is via an embedded USB hub (TSU). Video and data to the scan converter (SC) card is via an 12 way connector (TSS)

Send Enquiry

Product Details

Reference T65900800-6A
